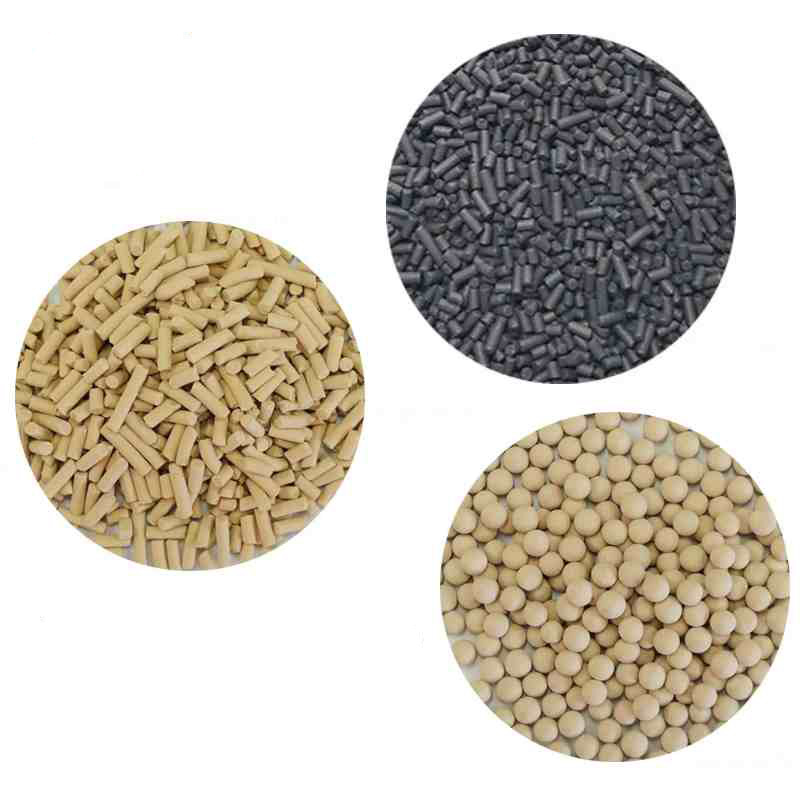

CMS vs Zeolite: Key Comparison Factors
When choosing the right adsorbent for nitrogen generation, understanding the key performance differences between Carbon Molecular Sieve (CMS) and Zeolite is essential. These factors determine not only the purity of the nitrogen produced but also the efficiency, durability, and overall cost of the system. CMS and Zeolite differ in nitrogen purity achievable, adsorption kinetics, mechanical strength, tolerance to operating conditions, and lifecycle costs. Evaluating these aspects allows operators to select the most suitable material for their specific industrial application, ensuring reliable, high-quality nitrogen production while optimizing energy consumption and maintenance requirements. This section breaks down the critical comparison factors in detail.
Nitrogen Purity
Carbon Molecular Sieves (CMS) provide nitrogen purity levels exceeding 99.9%, with fluctuations typically less than 0.1% over 24–48 hours of continuous operation. Zeolite-based adsorbents generally achieve 95–99% purity, and under high humidity conditions, purity can drop by 1–2%. Choosing the right adsorbent based on required purity ensures stable output and meets industrial standards for applications in medical, pharmaceutical, electronics, and food industries. Quantifying purity performance helps operators plan PSA system size, cycle timing, and potential need for pre-treatment equipment.
Adsorption Efficiency and Cycle Time
CMS achieves rapid oxygen adsorption with adsorption/desorption cycles ranging from 2 to 5 minutes, allowing higher throughput and stable nitrogen output. Zeolite typically requires longer cycles of 5–10 minutes, which may reduce overall system efficiency. Production capacity, measured in Nm³/h, is affected: CMS systems often handle 500–2,000 Nm³/h, while Zeolite systems manage 300–1,500 Nm³/h under standard conditions. These metrics directly influence PSA unit sizing, energy consumption, and operational planning.
Mechanical Strength and Durability
CMS is mechanically robust, resisting attrition, crushing, and powdering, with a service life of 5–10 years under standard continuous operation. Zeolite is more fragile, often requiring replacement every 2–5 years, depending on cycle frequency and airflow velocity. Using CMS minimizes maintenance frequency and ensures consistent nitrogen output, while Zeolite requires careful monitoring to prevent increased pressure drop and potential contamination. Quantifying expected lifespan helps plan maintenance schedules and total cost of ownership.
Operating Conditions: Pressure, Temperature, Moisture
CMS operates effectively within pressure ranges of 0.5–1.5 MPa and temperatures up to 80°C, with moderate moisture tolerance. Zeolite tolerates 0.3–1.2 MPa but is more sensitive to humidity and temperature fluctuations. For example, CMS inlet air humidity should be below 50 ppm H₂O to maintain performance. Understanding these operational limits ensures PSA systems are designed for stability and durability, preventing premature adsorbent degradation and minimizing energy losses.
Cost and Availability
CMS systems have higher upfront costs, roughly $5,000–$10,000 per ton, but lower long-term maintenance and higher efficiency reduce total ownership costs. Zeolite costs $2,500–$5,000 per ton initially, but more frequent replacements and higher energy usage can increase operational expenses. Considering lifetime maintenance, energy consumption, and expected adsorbent lifespan allows operators to calculate ROI accurately and make informed B2B procurement decisions.
Practical Considerations
Selecting the right adsorbent for nitrogen generation is a critical decision that affects system efficiency, reliability, and long-term operational costs. Industrial operators must evaluate production targets, purity requirements, operating environment, maintenance capabilities, and budget constraints before choosing between CMS and Zeolite. Understanding how each material performs under real-world conditions, including variations in pressure, temperature, and moisture, is essential for stable and efficient nitrogen production. Proper planning and implementation not only optimize system performance but also minimize downtime and ensure consistent high-quality output over the lifespan of the plant.

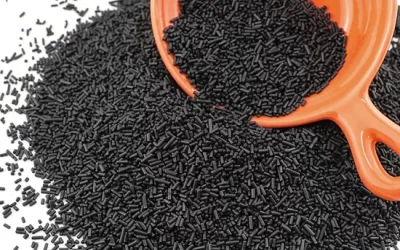

Choosing CMS for High-Purity Nitrogen
CMS is the top choice for high-purity nitrogen production, typically above 99.9%, making it indispensable for industries such as pharmaceuticals, electronics, and food packaging. Its uniform microporous structure allows precise separation of oxygen from air, maintaining extremely stable nitrogen purity even during continuous operation. Operators should ensure the feed air is pre-treated to remove moisture and contaminants, as these can reduce CMS efficiency. Maintaining optimal regeneration cycles and monitoring key parameters such as pressure drop, flow rate, and gas purity are crucial for prolonging CMS lifespan. With proper handling, CMS offers long-term reliability, high adsorption efficiency, and minimal operational disruptions, providing consistent performance for critical applications.

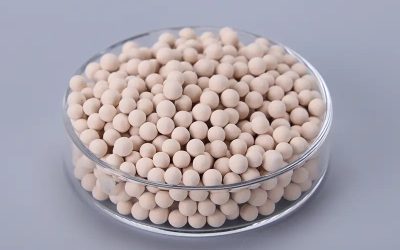

Using Zeolite for Medium-Purity or Specific Conditions
Zeolite is often selected for medium-purity nitrogen production, typically ranging from 95% to 99%, or when budget limitations make CMS less practical. It works effectively in PSA nitrogen generators for projects with moderate purity requirements or intermittent operation. Zeolite is sensitive to moisture and extreme temperature changes, so pre-treatment and careful system monitoring are necessary to maintain performance. Frequent inspection and timely replacement prevent contamination or efficiency loss. In situations where high purity is not essential, Zeolite provides a cost-effective solution, balancing initial investment, operational efficiency, and required maintenance schedules. Choosing Zeolite appropriately allows operators to maintain reliable nitrogen production while controlling costs.
Design, Maintenance, and Long-Term Cost Implications
The selection of CMS or Zeolite directly influences system design, operational practices, and lifecycle costs. CMS systems require a higher initial investment but offer longer service life, lower maintenance frequency, and highly stable nitrogen output, ultimately reducing long-term costs. Zeolite systems are cheaper upfront but may demand more frequent maintenance, replacement, and careful monitoring, which can increase overall operational expenditure over time. System design factors, such as proper PSA sizing, airflow management, and installation of monitoring instruments, are crucial to maximize adsorbent performance. A careful analysis of production needs, environmental conditions, and total cost of ownership ensures operators choose the most efficient and cost-effective solution for their nitrogen generation system.
PSA System Technical Details
Understanding the technical differences between CMS and Zeolite in PSA nitrogen generators is essential for designing efficient, reliable, and long-lasting systems. The performance of each adsorbent is influenced by adsorption bed design, pore structure, cycle timing, airflow management, and regeneration methods. These factors impact nitrogen purity, energy consumption, and operational lifespan. By carefully evaluating these parameters, operators can optimize PSA systems to deliver stable nitrogen production while minimizing maintenance and operational costs.
Adsorption Bed Design and Pore Structure
CMS features uniform micropores that provide precise oxygen-nitrogen separation, allowing high-purity nitrogen output and consistent performance during continuous operation. Adsorption beds are designed to handle wider pressure ranges and maintain stable airflow, reducing energy requirements during adsorption and regeneration. Zeolite has a broader pore size distribution and lower selectivity, which requires longer beds or more carefully controlled airflow to achieve similar nitrogen separation. Differences in bed design influence cycle duration, system footprint, and overall efficiency, making it crucial to select the appropriate adsorbent based on production and purity requirements.
Cycle Timing and Regeneration Methods
CMS allows shorter adsorption-desorption cycles due to its rapid oxygen adsorption, reducing energy consumption and improving throughput. Its regeneration process is more forgiving, tolerating minor fluctuations in pressure or temperature. Zeolite requires longer cycles and precise regeneration control; insufficient or improperly timed regeneration can lead to reduced adsorption efficiency, increased energy use, and faster material degradation. Understanding and optimizing cycle timing and regeneration parameters is essential to maintain system efficiency, prolong adsorbent life, and ensure consistent nitrogen quality over time.
Airflow Management and Operational Efficiency
Effective airflow management is critical for both CMS and Zeolite PSA systems. CMS can tolerate slight variations in flow without significant impact on purity or efficiency, while Zeolite is more sensitive to airflow fluctuations, which can cause uneven adsorption, pressure drop issues, and reduced nitrogen output. Proper distribution of air across the adsorption beds, combined with monitoring tools for pressure and flow, ensures optimal performance. These operational considerations directly affect energy consumption, maintenance requirements, and the longevity of the adsorbent material, highlighting the importance of precise system design and monitoring.
Common Issues and Practical Tips
While CMS and Zeolite are widely used in PSA nitrogen generators, each material has specific operational sensitivities that can affect performance, efficiency, and lifespan. Understanding these common issues and implementing preventive measures ensures reliable nitrogen output, minimizes downtime, and extends the service life of the adsorbent. Proper monitoring, maintenance, and environmental control are essential to keep both CMS and Zeolite systems operating optimally in industrial conditions.
CMS Moisture Sensitivity
CMS is highly sensitive to moisture, which can block micropores and reduce adsorption efficiency, leading to lower nitrogen purity and potentially shorter material lifespan. To prevent this, operators must install high-quality air drying systems, such as desiccant dryers or refrigerated air dryers, and consider pre-filtration to remove contaminants. Regular monitoring of inlet air humidity and implementing maintenance schedules for drying equipment are crucial. Proper moisture control ensures CMS retains its high adsorption performance, maintains consistent nitrogen purity above 99.9%, and minimizes unplanned downtime in critical industrial applications.
Zeolite Attrition and Powdering
downstream equipment. To mitigate these issues, operators should schedule periodic inspection and replacement of Zeolite beds, avoid abrupt changes in pressure, and ensure careful handling during installation or maintenance. Proper airflow management and gradual cycling further reduce wear. Following these practices helps maintain system efficiency, prolong Zeolite life, and prevent operational disruptions in medium-purity nitrogen applications.
General Operational Best Practices
Both CMS and Zeolite benefit from careful operational management, including regular monitoring of pressure drops, flow rates, and nitrogen purity. Maintaining optimal cycle timing, ensuring consistent regeneration pressure, and protecting the system from excessive temperature or humidity fluctuations are essential. Additionally, training personnel to recognize early signs of adsorbent degradation or performance decline can prevent costly downtime. Combining preventive maintenance, proper environmental control, and real-time system monitoring ensures that PSA nitrogen generators deliver stable, high-quality nitrogen while extending the life of the adsorbent materials.
Long-Term Cost and ROI Analysis
Choosing between CMS and Zeolite for nitrogen generation is not only a technical decision but also a financial one. While CMS systems have higher upfront costs due to superior material properties and precision manufacturing, they offer longer service life, lower maintenance frequency, and higher operational efficiency. These advantages reduce unplanned downtime and minimize energy consumption, resulting in a lower total cost of ownership over the system’s lifespan. Evaluating both initial investment and lifecycle costs is essential for operators planning high-purity or continuous nitrogen production.
Initial Investment vs Maintenance Costs
CMS requires a higher initial expenditure, but its durability and resistance to attrition reduce the frequency of replacements and maintenance interventions. Zeolite is cheaper upfront, which may appeal to budget-conscious projects, but its shorter lifespan and susceptibility to powdering or moisture damage can lead to more frequent maintenance and material replacement. Operators must weigh upfront savings against long-term operational costs, taking into account the labor, downtime, and spare parts required to maintain stable nitrogen output in industrial applications.
Energy Consumption and Operational Efficiency
Energy efficiency is another key factor affecting ROI. CMS allows shorter adsorption-desorption cycles and tolerates minor pressure variations, reducing energy consumption per unit of nitrogen produced. Zeolite’s longer cycles and sensitivity to airflow and pressure fluctuations can increase energy usage, particularly in large-scale or continuous operations. By optimizing cycle timing, airflow management, and regeneration processes, operators can maximize efficiency and reduce operating expenses regardless of the adsorbent used, improving overall ROI for their nitrogen generation systems.
Strategic ROI Considerations for B2B Operators
For industrial operators, ROI should be calculated by considering production requirements, nitrogen purity targets, operational hours, maintenance schedules, and energy costs. High-purity applications typically justify the CMS investment due to long-term reliability, whereas medium-purity projects may benefit from Zeolite if upfront costs are constrained. A thorough analysis of total cost of ownership, including equipment lifespan, adsorbent replacement cycles, and energy efficiency, enables operators to make informed, strategic decisions, ensuring sustainable nitrogen production and maximizing financial returns over time.
Optimize Your Nitrogen Production with Kingdotech
Maximize efficiency, reliability, and cost-effectiveness in your nitrogen generation systems with Kingdotech’s premium Carbon Molecular Sieves and Zeolite solutions. Our high-quality adsorbents are engineered for long-term stability, superior nitrogen purity, and optimized PSA performance, ensuring your industrial operations run smoothly with minimal downtime.
✔ High-purity CMS for critical industries
✔ Cost-effective Zeolite for medium-purity applications
✔ Technical support and system optimization guidance
✔ Reliable supply and long-term operational consistency
Conclusion
Choosing the right adsorbent—Carbon Molecular Sieve (CMS) or Zeolite—is crucial for achieving efficient, reliable, and cost-effective nitrogen generation. CMS excels in high-purity applications above 99.9%, offering uniform micropores, rapid adsorption cycles, strong mechanical durability, and long service life, making it ideal for medical, pharmaceutical, electronics, and food industries. Zeolite provides a cost-effective solution for medium-purity nitrogen, suitable for intermittent operation or budget-conscious projects, though it requires careful monitoring, pre-treatment, and periodic maintenance.
A thorough understanding of PSA system design, operating conditions, and adsorbent behavior allows operators to optimize nitrogen purity, energy consumption, and long-term performance. Evaluating initial investment, maintenance needs, and lifecycle costs ensures strategic decision-making, maximizing ROI. By aligning the choice of CMS or Zeolite with production goals and environmental conditions, industrial operators can achieve stable, high-quality nitrogen output while minimizing operational risks and downtime.
Frequently Asked Questions
What is the typical lifespan of CMS and Zeolite in PSA nitrogen generators?
The lifespan of Carbon Molecular Sieve (CMS) typically ranges from 5 to 10 years under standard continuous operation, depending on factors like feed air quality, humidity, and pressure fluctuations. Zeolite, on the other hand, usually lasts 2 to 5 years, as it is more sensitive to mechanical stress and moisture. Regular monitoring of pressure drop, nitrogen purity, and cycle performance helps identify when replacement is needed. Proper pre-treatment of feed air, controlled regeneration, and timely maintenance can extend adsorbent life, reduce downtime, and improve overall system reliability.
How can I prevent moisture-related issues in CMS systems?
CMS is highly sensitive to moisture, which can block micropores and reduce nitrogen purity. To prevent these issues, operators should install high-quality air dryers such as desiccant or refrigerated units, as well as pre-filters to remove contaminants. Monitoring inlet air humidity is essential to maintain levels below 50 ppm H₂O. Scheduled maintenance of drying equipment and periodic inspection of adsorption beds ensure consistent performance. Proper moisture control protects CMS efficiency, maintains nitrogen purity above 99.9%, and extends adsorbent lifespan, minimizing operational interruptions in critical industrial applications.
What operational practices help maximize Zeolite performance and lifespan?
Zeolite is prone to attrition and powdering, which can cause pressure drops, reduced nitrogen output, and contamination. To maximize performance, operators should handle Zeolite carefully during installation, avoid abrupt pressure changes, and maintain controlled airflow. Regular inspections and timely replacement of worn beds prevent efficiency losses. Monitoring cycle timing, regeneration pressure, and nitrogen purity ensures stable operation. Following these practices helps maintain medium-purity nitrogen output, reduces unplanned downtime, and extends the useful life of Zeolite in PSA systems.
